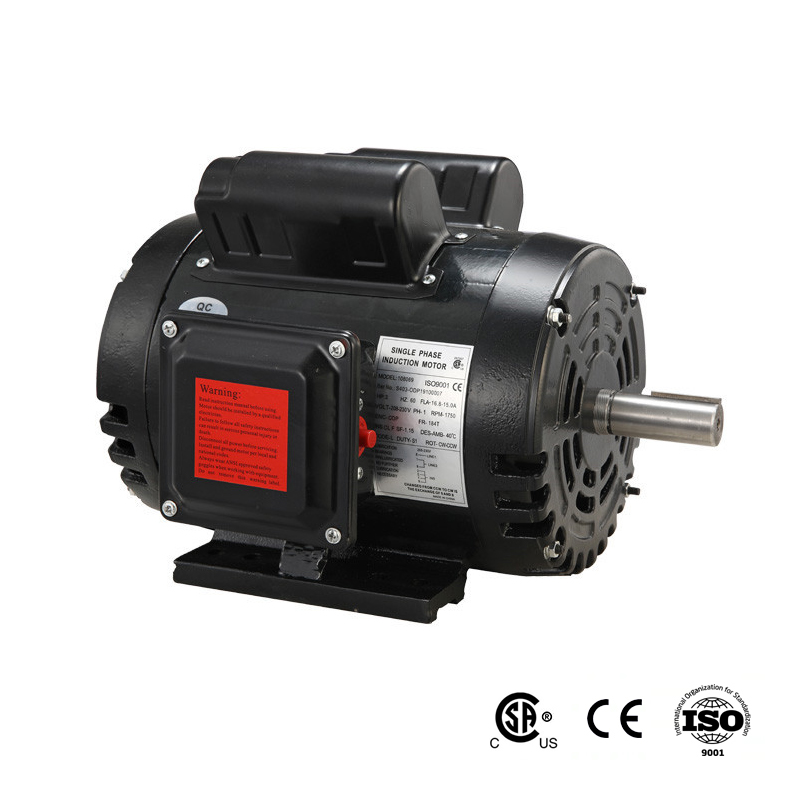

Cast Iron Housing ODP Single Phase

Standard Features: Cast Iron Housing ODP Single Phase

Inquiry Message

Tel： 0086-576-85046333 85046110
Fax： 0086-576-86326660
E-mail: sales@sihaimotor.com

Standard Features:

-----------------------------------------------------------------------

Power : 3HP~10HP
Speed: 3600/1800 RPM
Rated Speed: 3450/1750RPM
Pole : 2 / 4 Pole
Frame Size: 184T/215T
Volt: 230V
Rotation : CCW/CW
Capacitor : Start & Run Capacitor
Service Factor: 1.0 on 60HZ
Protection : IP23
Housing: Cast Iron
Enclosure: ODP
Class F Insulation
Continuous Duty Cycle
Overload Protection with Manual Reset  (184T)
